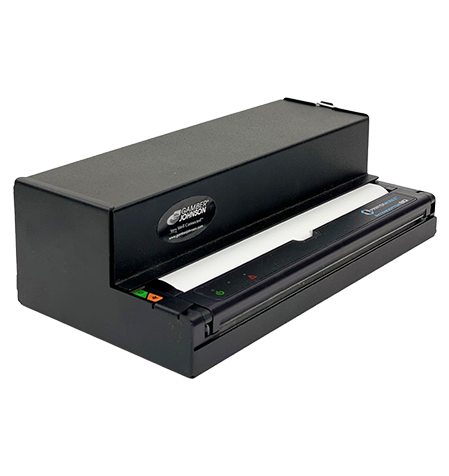

I80 ￜ Interceptor Series

Fast, Small, On-the-go, Full-page Printing

The PrintekMobile I80 series printers are the latest in reliable, compact, and innovative thermal printing. This small, full-page printer, allows users the ability to conveniently print a variety of documents on the go like eCitations, crash reports, receipts, bills-of-lading, invoices, schematics, reports, and more. The I80 is rated at 11ppm, and is capable of using continuous roll, perforated rolls, or single sheet thermal paper.

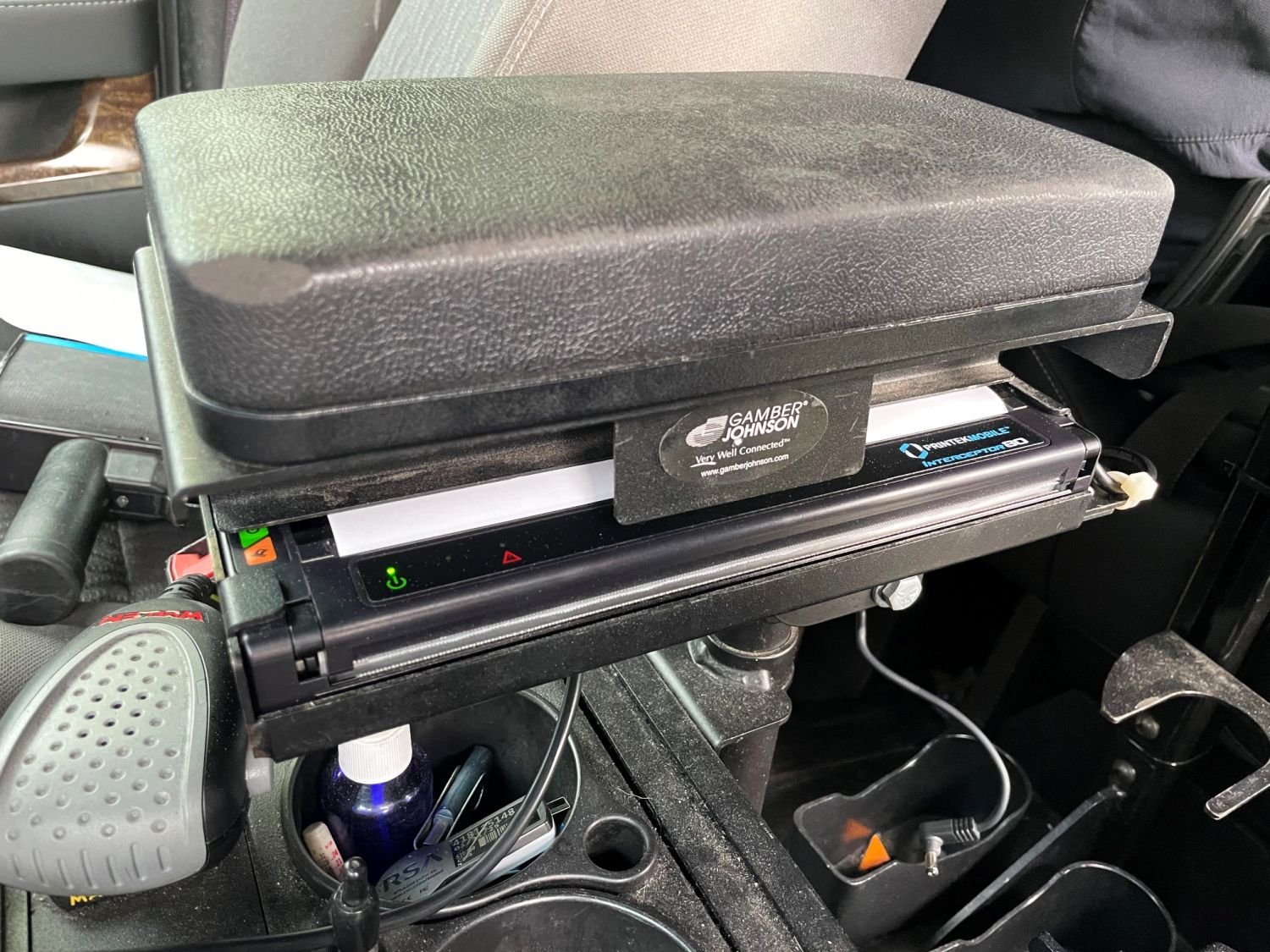

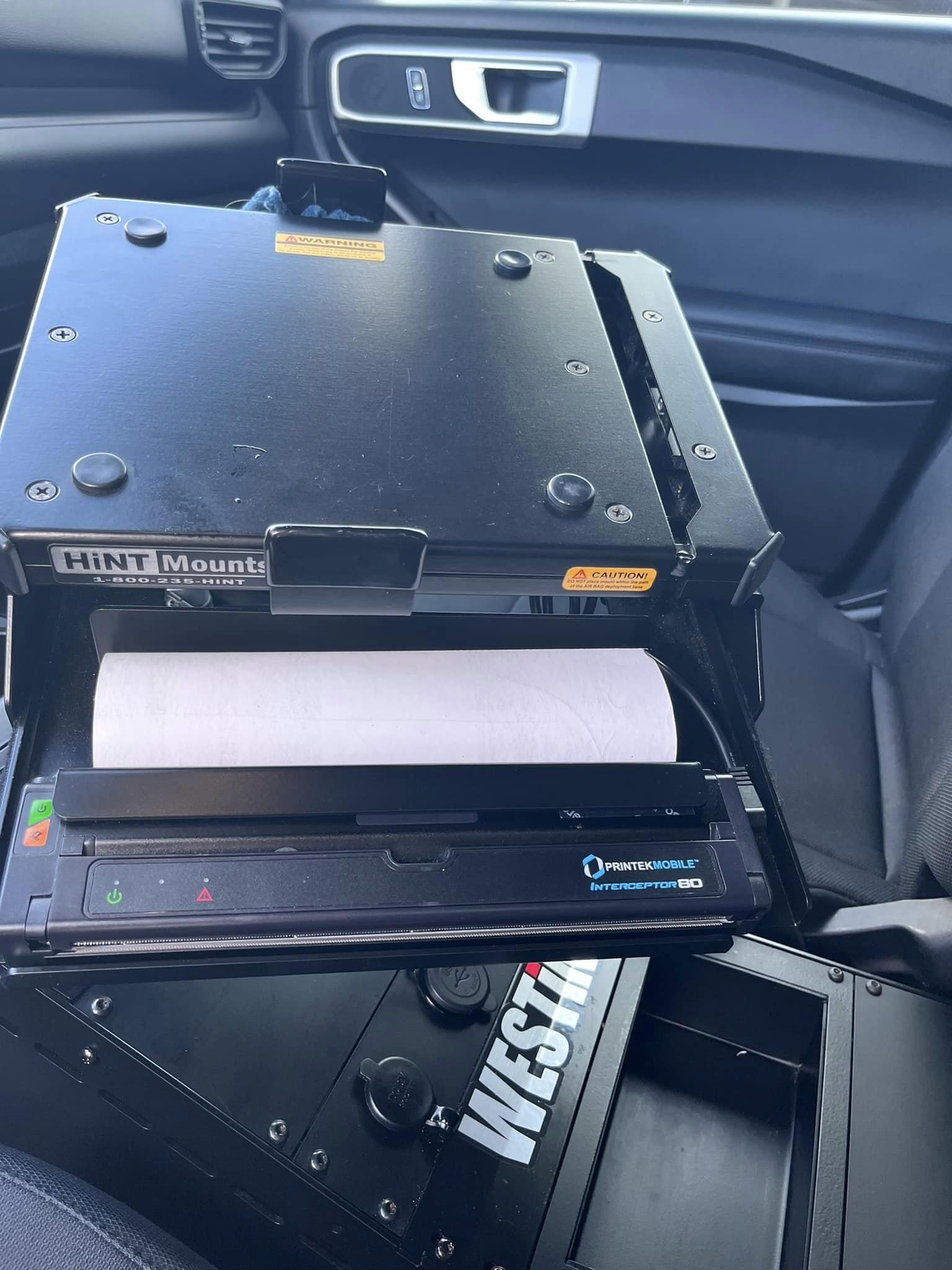

The I80 features USB, Bluetooth or Wi-Fi connectivity, and is compatible with Windows, Android, iOS Bluetooth, and Airprint to provide your users a wide range of connections. The I80 is a true drop-in replacement and fits most mounting systems available for in-vehicle printing. The I80 can also be used in desktop style applications using AC power. Compatible USB cables, in-vehicle power adaptors, or AC power adapters, make this printer the perfect addition to any mobile application where you need to print full-page documents on the go. The I80 gives you the ability to efficiently print documents, and streamline your work processes.

Ready to go out of the box, the I80 is simple and easy to set up. Key features of the I80 include:

• Dual serrated tear edges for clean crisp tear off of your documents.

• Large function buttons on top cover.

• Easy and smooth opening door, with auto loading of paper.

• 2ips / 11ppm print speeds.

• Windows, Android, and iOS Bluetooth compatible.

• Small foot print design for efficient mounting options.

The Interceptor 80 is small, lightweight, and one of the fastest full-sized page printers in the mobile market.

The Interceptor 80 printer is designed with a small footprint, dual serrated tear bars, and is easily mounted or used in a desktop style application. This fast, reliable, and affordable printer provides users a better printing solution than competitive models. With a two-year warranty, and customized pre-configurations available, this rugged mobile printer will help your mobile workforce become more productive. One look will convince you — Interceptor takes full page mobility and ease of use to a whole new level

• Easy-to-read control face with large buttons.

• The I80 quickly prints a wide variety of tickets, invoices, receipts, and more.

• IP54 rated for water and dust resistance, and can take a beating in real working mobile environments.

• Print speeds up to 2 ips (11 pages per minute) from the moment you press print.

• Extensive fonts, character sets, bar codes and direct graphic capabilities.

• Printer configuration is quick and easy with a web based interface.

• Compatible with Windows, Android, iOS Bluetooth, and Airprint.

• Capable of external feed for fanfold media, large capacity applications.

• Emulations that allow the printer to be a drop-in replacement for any mobile printer or legacy vehicle mounted printer.

Printing Specifications

• Printing Method: Direct Thermal.

• Printing Resolution: 203 dpi [8 dots per mm].

• Printing Speed: Up to 2 ips (11 pages per minute).

• Printing Width: Up to 8.27 inches or A4 width.

Fonts/Characters/Bar Codes

• Fonts: Virtually all TruType fonts, from 6 cpi to 22 cpi depending on emulation chosen, plus scaling.

• Unicode support for international characters.

• Bar Codes

Connectivity

• Standard (ALL units): USB 2.0 PNP to USB Mini.

• Wireless Options: Bluetooth 4.2,

• Wi-Fi 802.11 b/g/n

Print Media (use Printek media for best results)

• Paper Type: Direct Thermal Roll, Fanfold, and Cut Sheet.

• Roll Size: Maximum roll diameter dependent on mounting option used.

• Roll widths from A4 to 8.5" (up to 216mm).Roll Capacity: Dependent on mounting option used. No internal roll storage.

• Fanfold Size: Maximum width: 8.5" 216mm), maximum length 11.5" (305mm), total thickness 0.60"

• Core Size: 0.75" Recommended (19mm).

• Core ID: 0.50" (for most mounting options).

Software

• Drivers and Utilities: Drivers for WIN 7, WIN 8, WIN 10. Compatible with Windows Mobile, Android, iOS Bluetooth, and Airprint. Print utilities and SDK's for all platforms. Native App and Web printing.

• Printer Setup via internal web page, access with browser from any host (tablets and smartphones included).

• Emulations: Emulates many popular brands and languages including: Zebra CPCL, ZPL, and ESC POS. Firmware can be upgraded as new emulations become available.

• Supports direct printing of Postscripts, PDF, PBM, JPG, BMP, SVG, and TIFF files.

Power Management

• Battery: Not available.

• Power Options

Physical Specifications

• D x W x H: 10.0" x 2.16" x 1.18" (55 x 255 x 30mm).

• Weight: 1.35 lbs. (612g).

Environmental Specifications

• Operating Temp: 0° to 122° F (-18° to 50°C).

• Storage Temp: -4° to 140°F (-20° to 60°C).

• Humidity: 10% to 90% RH (non-condensing)

Operator Controls and Indicators

• 2 LED indicators for general fault, power indication. Buttons for power and paper feed.

• Sensors for paper out, and black mark detection.

Memory Capacity

• 256 MB Flash, 512 MB DDR2. Standard memory supports large and graphic intensive print jobs.

Durability and Reliability

• Durable extruded aluminum case.

• MTBF: 10,000 hours in normal use.

Regulatory Approvals

• FCC Class B, CE mark, UKCA, RoHS, UL listed AC adapters, e-mark.

Warranty

• 2-year warranty on the entire printer - case and printhead.

Options and Accessories

• AC wall adapter, 100-240 VAC

• In-vehicle power adapter, 12-24 VDC.

• Data cables: USB 2.0 PNP to USB Mini.

• Media in case quantities.

• Extended express warranties available.

• In-vehicle mounting systems available from companies like: Gamber Johnson, Havis, Lund, Troy, Jotto Desk,PMT, RAM Mount, and more.
